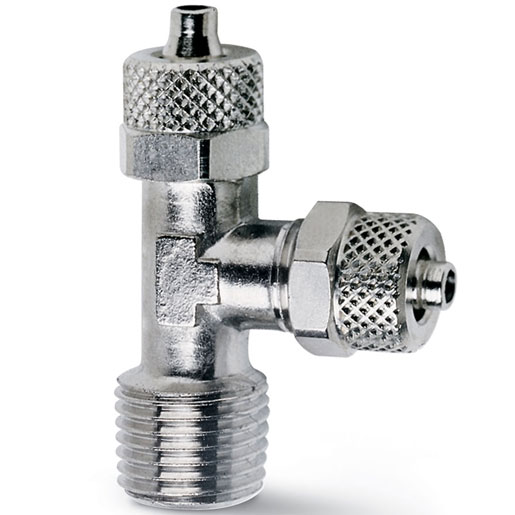

Fittings Mod. 1420


Code

Description

Diameter of the tubing

Connection

1420 10/8-1/4 RAPID FITTING, NORM

1420 10/8-1/4 RAPID FITTING, NORM

Ф 10/8 mm

G1/4

1420 10/8-1/8 RAPID FITTING, NORM

1420 10/8-1/8 RAPID FITTING, NORM

Ф 10/8 mm

G1/8

1420 5/3-1/8 RAPID FITTING, NORM

1420 5/3-1/8 RAPID FITTING, NORM

Ф 5/3 mm

G1/8

1420 6/4-1/4 RAPID FITTING, NORM

1420 6/4-1/4 RAPID FITTING, NORM

Ф 6/4 mm

G1/4

1420 6/4-1/8 RAPID FITTING, NORM

1420 6/4-1/8 RAPID FITTING, NORM

Ф 6/4 mm

G1/8

1420 8/6-1/4 RAPID FITTING, NORM

1420 8/6-1/4 RAPID FITTING, NORM

Ф 8/6 mm

G1/4

1420 8/6-1/8 RAPID FITTING, NORM

1420 8/6-1/8 RAPID FITTING, NORM

Ф 8/6 mm

G1/8

PDF technical parameters from manufacturer

1000-ENG.pdf DEU.8.2.5.pdf SPA.8.2.5.pdf FRA.8.2.5.pdf ITA.8.2.5.pdf
